Tracesci JETSCI® knowzzleJet™ M880
Ideal for Printers & Publishers of Books / Examination Papers

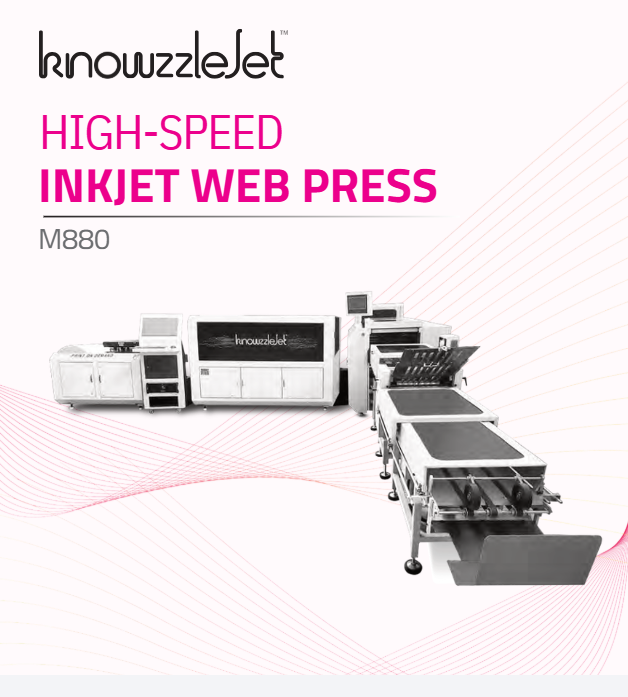

The knowzzleJet M880 marks a significant milestone in the digital printing industry as the world’s first 34‑inch roll‑to‑fold inkjet web press. Designed to meet the evolving demands of commercial, book, and transactional printing, the press combines high productivity, flexibility, and advanced inkjet technology, reinforcing India’s growing capabilities in high‑end print manufacturing.
Key Highlights:
- World’s First 34‑Inch Roll‑to‑Fold Inkjet Web Press
- Designed for high‑volume, high‑speed digital production
- Ideal alternative to traditional web offset for short to medium runs
Variable Data Printing
at high speeds
Effortlessly handling full-page variations with precision at high speed
Cost Efficiency
for large print runs
Eliminates large print runs, cutting upfront costs & storage expenses
Quick Turnaround
for rapid production
Enables rapid production and reducing lead times for large print runs
Enhanced Security
serialization & microtext printing
Deters counterfeiters and thus safeguarding documents and products
Advanced Printhead Technology
The knowzzleJet™ Inkjet Web press combines cutting-edge Duralink® printhead technologies from Memjet, delivering exceptional performance and cost-effectiveness. Duralink® ensures durability and highquality prints with minimal maintenance, setting a new ROI standard for monochrome printing.
Superior and efficient RIP
In any digital workflow, RIP (Raster Image Processor) is the most underrated part, where the efficiency of the whole digital printing platform depends on the efficiency of the RIP. Our XITRON RIP is one of the world’s fastest RIP and can handle variable data very efficiently because of its superior processing capability.
Quality and Productivity
The knowzzleJet™ M880 delivers exceptional print quality with high-resolution output and remarkable speeds for monochrome printing.
Productivity Chart
| knowzzleJet™ M880 | |||
| Machine Configuration | Resolution (dpi) User Selectable | Speed (Upto) | 880mm Press A4 Impressions per month |
| DUPLEX | 580 X 1600 | 150 m/min | 44 Million |
Technical Specifications
| Parameter | Specification |
| Models | M880 |
| Inkjet Printhead Technology | Duralink |
| Web Width | 880 m |
| Print Width | 820 m |
| Printing Options | Simplex / Duplex |
| Paper Weight | 45 – 150 gsm |
| Web Width | 34 inch |
| Print Resolutions | 540, 790, 920, 1260 × 1600 |
| Speed (upto) | 100 – 150 m/min |
| Ink Type / Color | Water-based Pigment – Black |
| Data File | PDF/X Printing Workflow |
| Unwind Roll Diameter | Up to 1270 mm |
| Configurations | Roll to Roll, Roll to Sheet (Zig-Zag), Roll to Fold |
| Power | Machine – 20 KW, IR – 20 KW, Inkjet – 8 KW* |
| Dimensions | Varies as per the selected configuration |
| Weight | 9750 kg* |
*Specifications may vary based on selected configuration. All features and performance metrics are subject to change without prior notice.
